Brook Crompton
Series 30

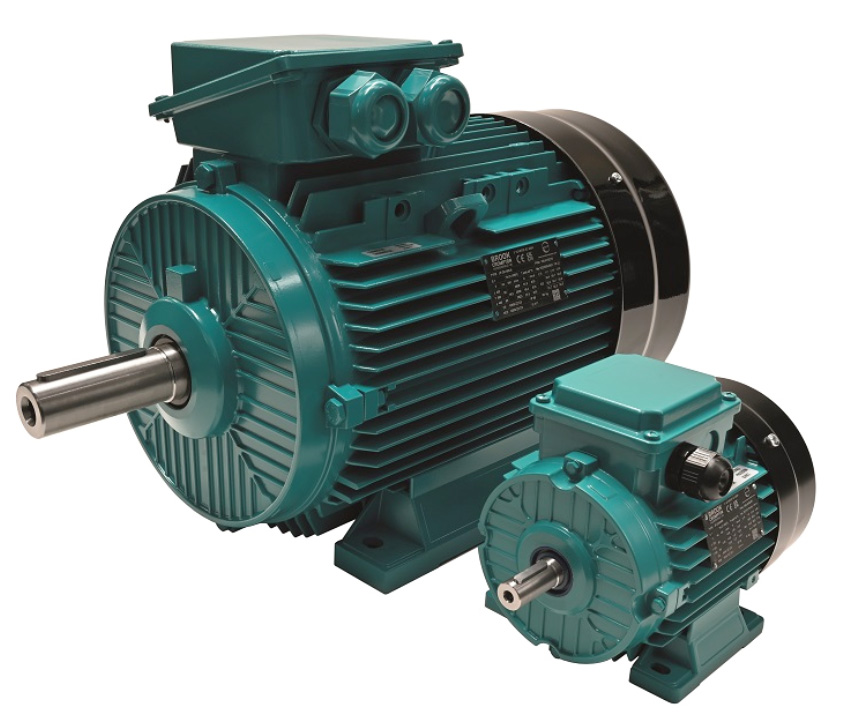

The Brook Crompton Series 30 range is a high-quality standard range of electric motors with a specification suitable for most industrial applications. It covers outputs from 0.55kW up to 375kW in frame sizes 80 to 355.
Benefits include
- Full output range to meet your requirements
- Efficiencies comply with EN60034-30 (IE3)
- Robust construction for long life
- Mountings: foot, flange, or combination
- Voltage: up to 3kW 230/400V; 4kW and above 400/690V
- Dual frequency (50 / 60Hz)
- IE3 efficiency, IE4 efficiency
- IP66
- Metal fan cove
- Metric entries
- Thermal protection fitted as standard
- Inverter duty
Specifications
- Frame material: 80 to 225 Aluminium – 160 to 355 Cast iron
- Enclosure: IP66
- Mounting option Foot (B3), Flange (B5), Face (B14) Foot & Flange (B35), Foot & Face (B34).
- Standard terminal box position: Top
- Voltage 3kW and below 230/400/50Hz & 460/60Hz – 4kW and above 400/690/50Hz & 460/60Hz – Frequency 50Hz & 60Hz
- Insulation: class H
- Thermal protection Thermistors (PTC)
- Ambient -20°C to +40°C
- Altitude up to 1000m above sea level
- Lubrication Frame 80 to 225 – greased for life bearings.
- Frame 250 to 355 – through greasing
- Paint colour water blue (RAL 5021)
